数据绑定（Data Binding）

仅当 RiveWidget 上的 Data Binding Mode 设置为 Manual 时，才需要使用这些 API。否则，您可以直接在 Unity 检查器的 Data 部分配置视图模型绑定。

private void OnEnable()
{
    riveWidget.OnWidgetStatusChanged += HandleWidgetStatusChanged;
}

private void OnDisable()
{
    riveWidget.OnWidgetStatusChanged -= HandleWidgetStatusChanged;
}

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        File file = riveWidget.File;

        // 按名称获取引用
        ViewModel viewModel = file.GetViewModelByName("My View Model");

        // 按索引获取引用
        for (int i = 0; i < file.ViewModelCount; i++)
        {
            ViewModel indexedVM = file.GetViewModelAtIndex(i);
        }

        // 获取画板的默认视图模型引用
        ViewModel defaultVM = riveWidget.Artboard.DefaultViewModel;
    }
}

仅当 RiveWidget 上的 Data Binding Mode 设置为 Manual 时，才需要使用这些 API。否则，您可以直接在 Unity 检查器的 Data 部分配置视图模型绑定。

private void OnEnable()
{
    riveWidget.OnWidgetStatusChanged += HandleWidgetStatusChanged;
}

private void OnDisable()
{
    riveWidget.OnWidgetStatusChanged -= HandleWidgetStatusChanged;
}

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModel vm = riveWidget.File.GetViewModelByName("My View Model");

        // 创建空白实例
        ViewModelInstance vmiBlank = vm.CreateInstance();

        // 创建默认实例
        ViewModelInstance vmiDefault = vm.CreateDefaultInstance();

        // 按索引创建
        for (int i = 0; i < vm.InstanceCount; i++)
        {
            ViewModelInstance vmiIndexed = vm.CreateInstanceAt(i);
        }

        // 按名称创建
        ViewModelInstance vmiNamed = vm.CreateInstanceByName("My Instance");
    }
}

// 使用 Unity Inspector
// 1. 在 Inspector 中选择 RiveWidget
// 2. 在 "Data" 部分，设置 Data Binding Mode：
//    - Auto Bind Default：自动绑定默认视图模型实例
//    - Auto Bind Selected：使用下拉菜单中选中的特定实例
//    - Manual：需要在代码中手动设置绑定

// 或者通过编程方式（设置为 Manual 或使用底层 API 时）
private void OnEnable()
{
    riveWidget.OnWidgetStatusChanged += HandleWidgetStatusChanged;
}

private void OnDisable()
{
    riveWidget.OnWidgetStatusChanged -= HandleWidgetStatusChanged;
}

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModel vm = riveWidget.Artboard.DefaultViewModel;
        ViewModelInstance vmi = vm.CreateDefaultInstance();

        // 应用到状态机将自动绑定到其画板
        riveWidget.StateMachine.BindViewModelInstance(vmi);
    }
}

📌 组件 API（推荐）

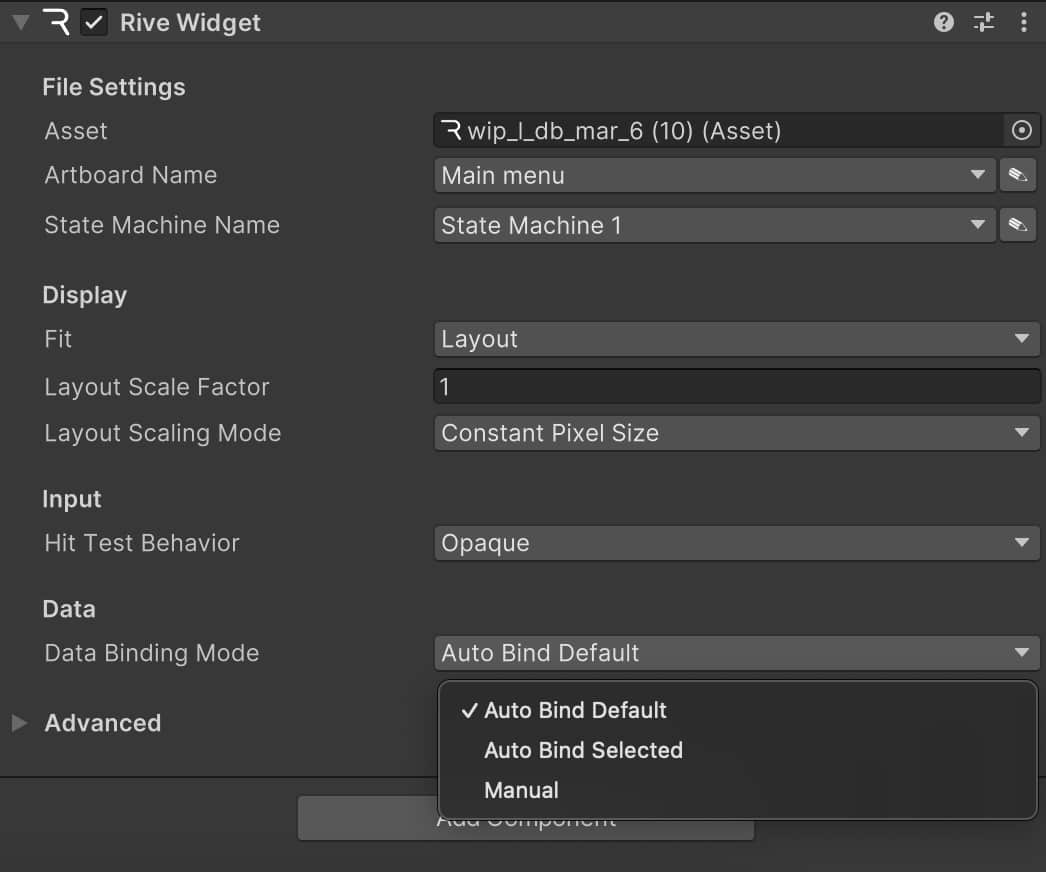

Rive Widget 提供了可视化和编程两种方式来配置自动绑定。在检查器中，您可以通过数据绑定模式下拉菜单轻松设置绑定：

要以编程方式启用自动绑定，请使用以下 API：

// 在 Widget 加载之前设置：

// 选项 1：自动绑定默认实例
riveWidget.BindingMode = DataBindingMode.AutoBindDefault;

// 选项 2：按名称自动绑定特定实例
riveWidget.BindingMode = DataBindingMode.AutoBindSelected;
riveWidget.ViewModelInstanceName = "My Instance";

// 设置绑定模式后加载 Rive 文件
riveWidget.Load(riveFile, artboardName, stateMachineName);

...
// 访问已自动绑定的当前实例
ViewModelInstance boundInstance = riveWidget.StateMachine.ViewModelInstance;

📌 旧版 API

⚠️ 你正在使用旧版 API。建议升级到最新的组件 API。

如果您选择使用底层 API 来控制渲染循环，则需要在脚本中手动设置数据绑定。

作为参考，请查看此 RiveScreen 示例，它演示了如何在自定义渲染循环中实现自动绑定的一种方式。

使用底层 API 需要额外的实现工作以及对 Rive 运行时的理解。除非您有特殊需求需要设置自定义渲染循环，否则我们建议使用组件 API。

var vm = riveWidget.File.GetViewModelByName("My View Model");

// 属性列表
var properties = vm.Properties;
foreach (var prop in properties)
{
    Debug.Log($"Property: {prop.Name}, Type: {prop.Type}");
}

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModelInstance viewModelInstance = riveWidget.StateMachine.ViewModelInstance;

        // 字符串属性
        ViewModelInstanceStringProperty stringProperty = viewModelInstance.GetStringProperty("title");
        Debug.Log($"String value: {stringProperty.Value}");
        stringProperty.Value = "New Text";

        // 数值属性
        ViewModelInstanceNumberProperty numberProperty = viewModelInstance.GetNumberProperty("count");
        Debug.Log($"Number value: {numberProperty.Value}");
        numberProperty.Value = 42.5f;

        // 布尔属性
        ViewModelInstanceBooleanProperty boolProperty = viewModelInstance.GetBooleanProperty("isActive");
        Debug.Log($"Boolean value: {boolProperty.Value}");
        boolProperty.Value = true;

        // 颜色属性
        ViewModelInstanceColorProperty colorProperty = viewModelInstance.GetColorProperty("backgroundColor");
        Color currentColor = colorProperty.Value;
        colorProperty.Value = new UnityEngine.Color(1, 0, 0, 1); // 红色
        Color32 currentColor32 = colorProperty.Value32;
        colorProperty.Value32 = new Color32(0, 255, 0, 255); // 绿色

        // 枚举属性
        ViewModelInstanceEnumProperty enumProperty = viewModelInstance.GetEnumProperty("category");
        Debug.Log($"Enum current value: {enumProperty.Value}");
        Debug.Log($"Enum available values: {string.Join(", ", enumProperty.EnumValues)}");
        enumProperty.Value = "option_name";

        // 触发器属性
        ViewModelInstanceTriggerProperty triggerProperty = viewModelInstance.GetTriggerProperty("onSubmit");
        triggerProperty.Trigger(); // 触发
    }
}

if (riveWidget.Status == WidgetStatus.Loaded)
{
    var viewModelInstance = riveWidget.StateMachine.ViewModelInstance;

    // 使用链式调用访问嵌套视图模型
    var nestedNumberByChain = viewModelInstance
        .GetViewModelInstanceProperty("My Nested View Model")
        .GetViewModelInstanceProperty("My Second Nested VM")
        .GetNumberProperty("My Nested Number");

    // 使用路径表示法访问嵌套属性
    var nestedNumberByPath = viewModelInstance
        .GetNumberProperty("My Nested View Model/My Second Nested VM/My Nested Number");
}

private ViewModelInstanceNumberProperty numberProperty;
private ViewModelInstanceStringProperty stringProperty;
private ViewModelInstanceBooleanProperty boolProperty;
private ViewModelInstanceColorProperty colorProperty;
private ViewModelInstanceEnumProperty enumProperty;
private ViewModelInstanceTriggerProperty triggerProperty;

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModelInstance viewModelInstance = riveWidget.StateMachine.ViewModelInstance;

        // 为属性添加监听器
        numberProperty = viewModelInstance.GetNumberProperty("count");
        numberProperty.OnValueChanged += OnNumberPropertyChanged;

        stringProperty = viewModelInstance.GetStringProperty("title");
        stringProperty.OnValueChanged += OnStringPropertyChanged;

        boolProperty = viewModelInstance.GetBooleanProperty("isActive");
        boolProperty.OnValueChanged += OnBoolPropertyChanged;

        colorProperty = viewModelInstance.GetColorProperty("backgroundColor");
        colorProperty.OnValueChanged += OnColorPropertyChanged;

        enumProperty = viewModelInstance.GetEnumProperty("category");
        enumProperty.OnValueChanged += OnEnumPropertyChanged;

        triggerProperty = viewModelInstance.GetTriggerProperty("onSubmit");
        triggerProperty.OnTriggered += OnTriggerPropertyFired;
    }
}

private void OnNumberPropertyChanged(float newValue) { Debug.Log($"Number changed to: {newValue}"); }
private void OnStringPropertyChanged(string newValue) { Debug.Log($"String changed to: {newValue}"); }
private void OnBoolPropertyChanged(bool newValue) { Debug.Log($"Boolean changed to: {newValue}"); }
private void OnColorPropertyChanged(UnityEngine.Color newValue) { Debug.Log($"Color changed to: {ColorUtility.ToHtmlStringRGBA(newValue)}"); }
private void OnEnumPropertyChanged(string newValue) { Debug.Log($"Enum changed to: {newValue}"); }
private void OnTriggerPropertyFired() { Debug.Log("Trigger fired!"); }

private void OnDestroy()
{
    numberProperty.OnValueChanged -= OnNumberPropertyChanged;
    stringProperty.OnValueChanged -= OnStringPropertyChanged;
    boolProperty.OnValueChanged -= OnBoolPropertyChanged;
    colorProperty.OnValueChanged -= OnColorPropertyChanged;
    enumProperty.OnValueChanged -= OnEnumPropertyChanged;
    triggerProperty.OnTriggered -= OnTriggerPropertyFired;
}

[SerializeField] private ImageOutOfBandAsset m_lightImageAsset;
[SerializeField] private ImageOutOfBandAsset m_darkImageAsset;

private ViewModelInstanceImageProperty imageProperty;
private bool isDarkMode = false;

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        m_lightImageAsset.Load();
        m_darkImageAsset.Load();
        ViewModelInstance viewModelInstance = riveWidget.StateMachine.ViewModelInstance;

        imageProperty = viewModelInstance.GetImageProperty("profileImage");
        imageProperty.OnValueChanged += OnImageChanged;
        imageProperty.Value = m_lightImageAsset; // 初始设置为亮色模式
    }
}

public void ToggleTheme()
{
    if (imageProperty != null)
    {
        isDarkMode = !isDarkMode;
        imageProperty.Value = isDarkMode ? m_darkImageAsset : m_lightImageAsset;
    }
}

public void ClearImage()
{
    if (imageProperty != null) imageProperty.Value = null;
}

private void OnDestroy()
{
    m_lightImageAsset.Unload();
    m_darkImageAsset.Unload();
    if (imageProperty != null) imageProperty.OnValueChanged -= OnImageChanged;
}

有关 Unity 中图像数据绑定的演示，请参阅 Rive Unity 示例仓库 中的 Image Data Binding 场景。

private ViewModelInstanceListProperty listProperty;

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModelInstance viewModelInstance = riveWidget.StateMachine.ViewModelInstance;
        listProperty = viewModelInstance.GetListProperty("todos");
        listProperty.OnChanged += OnListChanged;

        var todoItemVM = riveWidget.File.GetViewModelByName("TodoItem");
        var newTodo = todoItemVM.CreateInstance();
        newTodo.GetStringProperty("description").Value = "Buy groceries";
        listProperty.Add(newTodo);

        var anotherTodo = todoItemVM.CreateInstance();
        listProperty.Insert(anotherTodo, 0); // 在开头插入

        for (int i = 0; i < listProperty.Count; i++)
        {
            var item = listProperty.GetInstanceAt(i);
            Debug.Log($"Item {i}: {item}");
        }

        listProperty.Remove(newTodo);       // 移除特定实例
        listProperty.RemoveAt(0);            // 按索引移除
        if (listProperty.Count > 1) listProperty.Swap(0, 1); // 交换位置
    }
}

private void OnListChanged() { Debug.Log("List updated!"); }
private void OnDestroy() { if (listProperty != null) listProperty.OnChanged -= OnListChanged; }

画板属性使用 BindableArtboard 类，它与包中的常规 Artboard 类不同。BindableArtboard 是一个运行时包装器，用于通过数据绑定与画板进行交互。这些实例引用文件中现有的画板，因此无需在 Rive 编辑器中额外设置。

[SerializeField] private Asset m_externalRiveAsset;
private ViewModelInstanceArtboardProperty artboardProperty;
private File externalFile;

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModelInstance viewModelInstance = riveWidget.StateMachine.ViewModelInstance;
        artboardProperty = viewModelInstance.GetArtboardProperty("artboard_1");
        artboardProperty.OnValueChanged += OnArtboardChanged;

        var blueArtboard = riveWidget.File.BindableArtboard("ArtboardBlue");
        artboardProperty.Value = blueArtboard;

        if (m_externalRiveAsset != null) externalFile = File.Load(m_externalRiveAsset);
    }
}

public void SwitchToRedArtboard()
{
    if (artboardProperty != null)
        artboardProperty.Value = riveWidget.File.BindableArtboard("ArtboardRed");
}

public void SwitchToExternalArtboard()
{
    if (artboardProperty != null && externalFile != null)
        artboardProperty.Value = externalFile.BindableArtboard("SomeArtboard");
}

private void OnDestroy()
{
    externalFile?.Dispose();
    if (artboardProperty != null) artboardProperty.OnValueChanged -= OnArtboardChanged;
}

使用带有可绑定画板的自定义视图模型实例

您可以将自定义的 ViewModelInstance 链接到可绑定画板，从而控制该画板使用的数据：

var file = riveWidget.File;
var viewModelInstance = file.GetViewModelByName("CharacterData").CreateInstance();
var bindableArtboard = file.BindableArtboard("FeaturedCharacterCard", viewModelInstance);

示例：特色内容槽 — 一个主屏幕有一个"特色"内容区域，可以动态显示不同类型的促销内容，每种使用不同的画板和独特的数据结构：

private ViewModelInstanceArtboardProperty featuredContentSlot;
private ViewModelInstance characterData, eventData, offerData;
private BindableArtboard featuredCharacter, limitedEvent, specialOffer;

private void HandleWidgetStatusChanged()
{
    if (riveWidget.Status == WidgetStatus.Loaded)
    {
        ViewModelInstance viewModelInstance = riveWidget.StateMachine.ViewModelInstance;
        featuredContentSlot = viewModelInstance.GetArtboardProperty("featuredContentSlot");

        // 特色角色 — 独特的数据结构
        characterData = riveWidget.File.GetViewModelByName("CharacterData").CreateInstance();
        characterData.GetStringProperty("name").Value = "Shadowblade";
        characterData.GetStringProperty("class").Value = "Assassin";
        characterData.GetNumberProperty("attackPower").Value = 92;
        characterData.GetStringProperty("specialAbility").Value = "Phantom Strike";
        characterData.GetBoolProperty("unlocked").Value = false;

        // 限时活动 — 独特的数据结构
        eventData = riveWidget.File.GetViewModelByName("EventData").CreateInstance();
        eventData.GetStringProperty("title").Value = "Dragon Raid Weekend";
        eventData.GetStringProperty("description").Value = "Team up to defeat the ancient dragon";
        eventData.GetNumberProperty("hoursRemaining").Value = 36;
        eventData.GetNumberProperty("participants").Value = 1247;
        eventData.GetBoolProperty("active").Value = true;

        // 特殊优惠 — 独特的数据结构
        offerData = riveWidget.File.GetViewModelByName("OfferData").CreateInstance();
        offerData.GetStringProperty("itemName").Value = "Legendary Weapon Pack";
        offerData.GetNumberProperty("originalPrice").Value = 2999;
        offerData.GetNumberProperty("discount").Value = 50;
        offerData.GetStringProperty("currencyType").Value = "Gems";
        offerData.GetNumberProperty("expiresInHours").Value = 12;

        featuredCharacter = riveWidget.File.BindableArtboard("FeaturedCharacterCard", characterData);
        limitedEvent = riveWidget.File.BindableArtboard("EventBanner", eventData);
        specialOffer = riveWidget.File.BindableArtboard("OfferCard", offerData);
        featuredContentSlot.Value = featuredCharacter;
    }
}

var viewModelInstance = riveWidget.StateMachine.ViewModelInstance;

// 从文件中访问枚举
var enums = riveWidget.File.ViewModelEnums;
foreach (var enumType in enums)
{
    Debug.Log($"Enum: {enumType.Name}");
    foreach (var value in enumType.Values) Debug.Log($" - Value: {value}");
}

// 使用枚举属性
var enumProperty = viewModelInstance.GetEnumProperty("category");
Debug.Log($"Current value: {enumProperty.Value}");
Debug.Log($"Available values: {string.Join(", ", enumProperty.EnumValues)}");
enumProperty.Value = enumProperty.EnumValues[0];
